wavewatch

I See Signals. Anywhere.

Wavewatch is a browser based oscilloscope focused on user experience. Display is fullscreen, automaticall adapts to your screen size, with responsive GUI so that the main thing you look at is what you want to see. Signals.

Try Wavewatch on your device now or download the source on Gitlab for further use. It's Open Source so feel free to share or even embed on your website.

Using Anywhere

Wavewatch runs on any HTML5 capable browser, from your benchwork Personal Computer, up to your Tablet or mobile phone. It simply hooks the audio input of your device and displays input signal*.

Monitor up to 2 channels independantly with all the time and amplitude features you'd expect from an oscilloscope. Notably, the responsive GUI provides channel management and a configurable triggering function allows to focus on signal events.

How it works

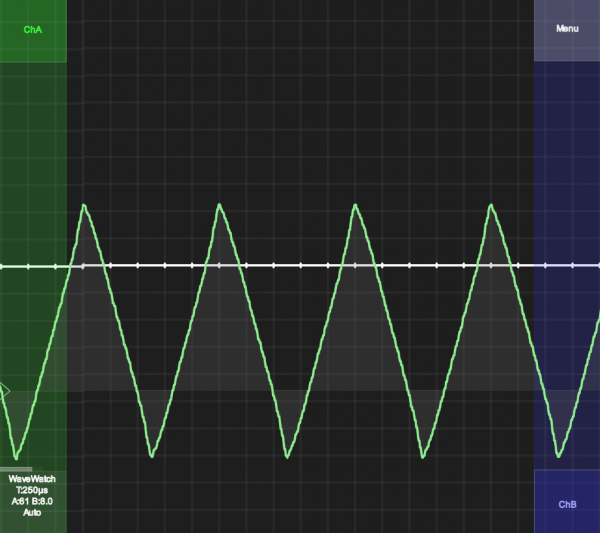

Four Squares Simple GUI
GUI is located on the four corner squares. Click them for accessing to Channel or Global Menus. One for each channel, one upper right Menu, and one bottom left Info button that also starts/stop triggering.

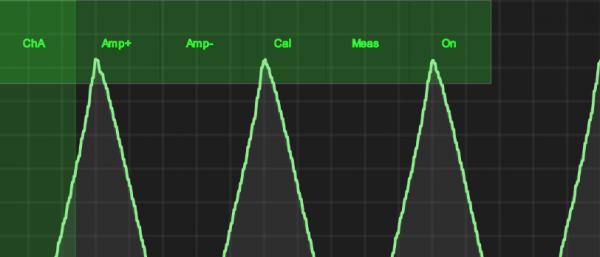

Expand & Collapse Responsive GUI
Menus expand and collapse on demand so that your primary vision is focused on signal.

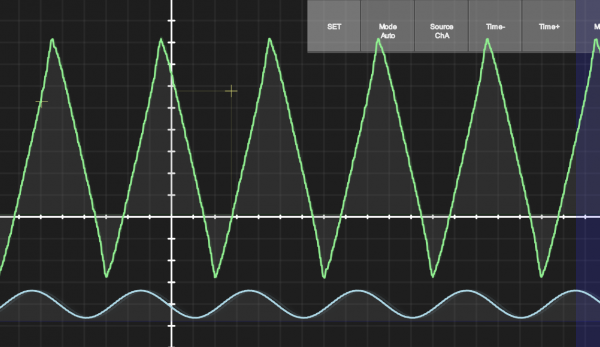

Control your Trigger
Mouse triggering level selection with comprehensive A/B selection in main Menu.
