Autotalk

Automatic talkback mute synced with DAW.

IDLEStaticFreeMic ONBlue #bluePunchMic OFFRedPTT_PTTMANUALStaticMuteMic OFFOrangeOpenMic ONGreenPTT_PTTAUTOWhen MIDI_STOP > Slow FadeWhen MIDI_PLAY > Ping Pong fadeStopMic ONGreenPlayMic OFFGreenRecMIDI_PLAYMIDI_RECMIDI_RECMIDI_STOPMIDI_STOP_MIDI_REC & MIDI_PLAYMode ButtonMode ButtonMode Button

Principle

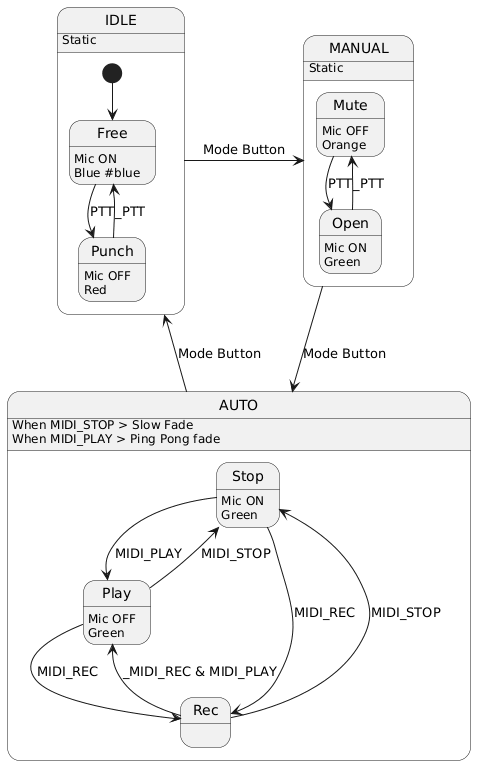

Functional transaction al diagram. autotalk:autotalk.png

Analog mute and schematic and principle: autotalk:schematic.png

Functional states
